Keyboard

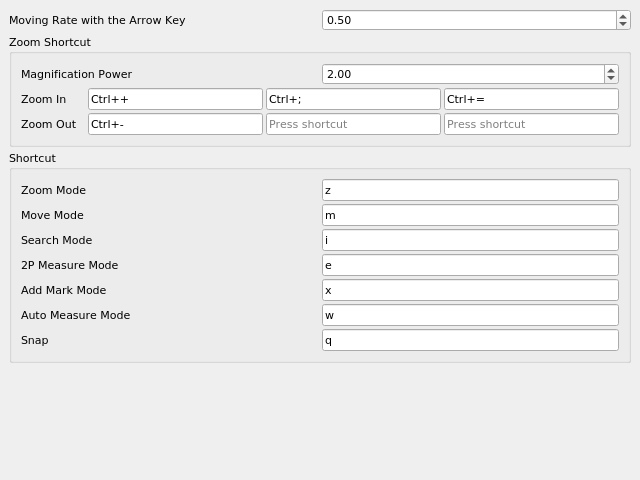

Keyboard settings
Keyboard
Moving Rate with the Arrow Key
--screen-keyboard-moving-rate
[<value>]
(0.5)
Specifies the amount of move in the ratio of screen size. This ratio is applied for arrow key moves.
Zoom Shortcut/Magnification Power
--screen-keyboard-zooming-rate
[<value>]
(2)
Specifies the magnification power to be used for zooming with shortcut.
Zoom Shortcut/Zoom In
--screen-keyboard-zoom-in
[<Key Sequence>]
(“Ctrl++”,“Ctrl+;”,“Ctrl+=”)
Specifies the key sequence for screen zoom in.
Zoom Shortcut/Zoom Out
--screen-keyboard-zoom-out
[<Key Sequence>]
(Ctrl+-)
Specifies the key sequence for screen zoom out.
Shortcut/Zoom Mode
--key-bind-zoom
[<key>]
(z)
Specifies a shortcut key to hold down for switching to Zoom Mode temporarily.
Shortcut/Move Mode
--key-bind-move
[<key>]
(m)
Specifies the shortcut key to hold down for switching to Move Mode temporarily.
Shortcut/Search Mode
--key-bind-inspect
[<key>]
(i)
Specifies a shortcut key to hold down for switching to Search Figure & Cell Mode temporarily.
Shortcut/2P Measure Mode
--key-bind-2p-measure
[<key>]
(e)
Specifies the shortcut key to hold down for switching to 2p Measure Mode temporarily.
Shortcut/Add Mark Mode
--key-bind-add-mark
[<key>]
(x)
Specifies the shortcut key to hold down for switching to Add Mask Mode temporarily.
Shortcut/Auto Measure Mode
--key-bind-auto-measure
[<key>]
(w)
Specifies the shortcut key to hold down for switching to Auto Measure Mode temporarily.
Shortcut/Snap
--key-bind-execute-snap
[<key>]
(q)
Specifies the shortcut key to snap. Mouse cursor is aligned to the nearest point, cross point or line when snapped.
Last modified December 9, 2024
