Sliver Count

Calculating sliver count settings

Sliver Count

When Argument is specified as <dim>, you can put unit suffix after the value (e.g. 0.1nm). If no unit suffix is specified, [um] is assumed.

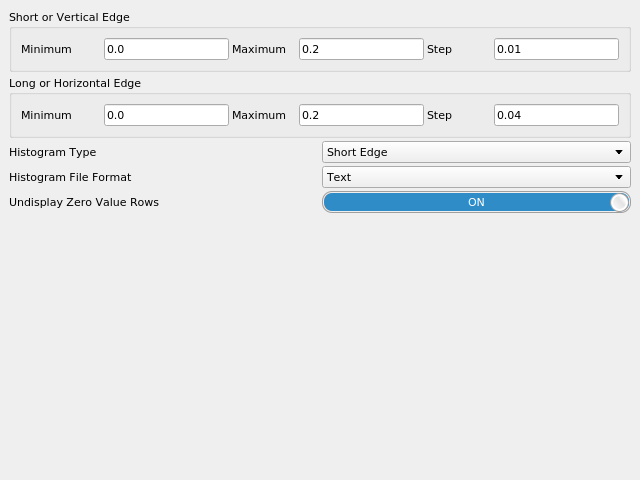

Short or Vertical Edge/Minimum

--sliver-count-row-min [<dim>] (0.0)

Specifies the short or vertical edge minimum length while counting slivers.

Short or Vertical Edge/Maximum

--sliver-count-row-max [<dim>] (0.2)

Specifies the short or vertical edge maximum length while counting slivers.

Short or Vertical Edge/Step

--sliver-count-row-step [<dim>] (0.01)

Specifies the histogram bin of short or vertical edge sliver count.

Long or Horizontal Edge/Minimum

--sliver-count-col-min [<dim>] (0.0)

Specifies the minimum length of long or horizontal edge while counting slivers.

Long or Horizontal Edge/Maximum

--sliver-count-col-max [<dim>] (0.2)

Specifies the maximum length of long or horizontal edge while counting slivers.

Long or Horizontal Edge/Step

--sliver-count-col-step [<dim>] (0.04)

Specifies the histogram bin of long or horizontal edge sliver count.

Histogram Type

--sliver-count-print-type [(*1)] (short)

Specifies the sliver count histogram type.

short : Short Edge
short-c : Short Edge (Cumulative)
long : Long Edge
long-c : Long Edge (Cumulative)
matrix : Matrix Short / Long
matrix-c : Matrix Short / Long (Cumulative)
matrix-xy : Matrix Y / X
matrix-xy-c : Matrix Y / X (Cumulative)

Histogram File Format

--sliver-count-histogram-format [<Text|Csv>] (Text)

Specifies an output file format of sliver count histogram.

Undisplay Zero Value Rows

--sliver-count-undisp-zero-rows [<on|off>] (on)

Specifies whether to skip rows with 0 figure in the histogram.
