Pattern Match

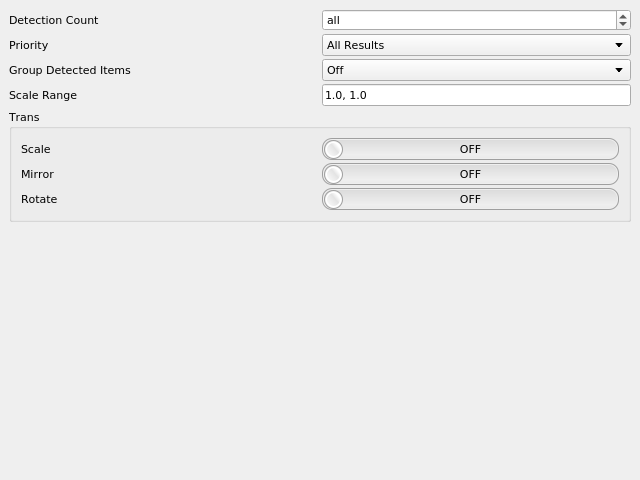

Pattern Match settings
Pattern Match
Detection Count
--measure-matching-required-count
[<count>]
(0)
Specifies the detection count when executing Pattern Match. When 0 is specified, it is unlimited.
Priority
--measure-matching-priority
[<all|near|far>]
(all)
Specifies the detection priority when executing Pattern Match.
Group Detected Items
--measure-matching-group-type
[<off|single|single-prune|on|prune>]
(off)
Specifies how to group Pattern Match results.
Scale Range
--measure-matching-scale-range
[<min>,<max>]
(1.0, 1.0)
Specifies the range of scaling factor for Pattern Match.
Trans/Scale
--measure-matching-trans-scale
[<on|off>]
(off)
Specifies whether to detect patterns which match with scaled templates.
Trans/Mirror
--measure-matching-trans-mirror
[<on|off>]
(off)
Specifies wether to detect patterns which match with mirrored templates. When on is specified, patterns matched with mirroring around X axis can be detected.
Trans/Rotate
--measure-matching-trans-rotate
[<on|off>]
(off)
Specifies whether to detect patterns which match with rotated templates. When on is specified, patterns matched with rotations of 90, 180, or 270 degrees can be detected.
