Plot

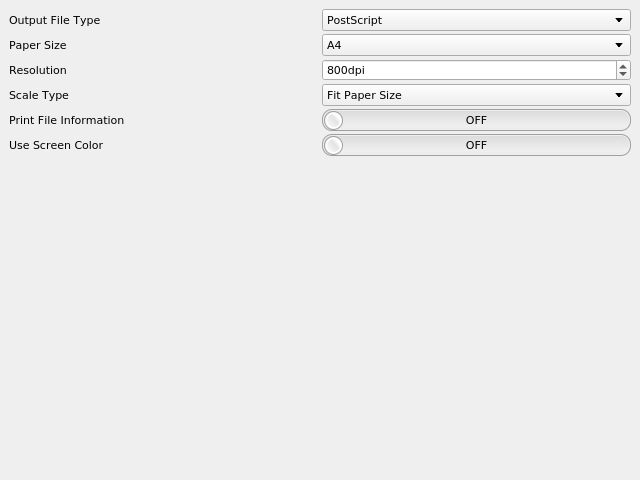

Plot settings
Plot
Output File Type
--plot-output-type
[<PS|PDF>]
(PS)
Specifies the output file type.
Paper Size
--plot-sheet
[(*1)]
(A4)
Specifies the paper size of plot.
(*1) :
<A0|A1|A2|A3|A4|A5|B0|B1|B2|B3|B4|B5|Letter|1M|2M|3M>
Resolution
--plot-reso
[<value>]
(800)
Specifies the resolution of plot [pixel].
Scale Type
--plot-scale-type
[<full-scale|fit-papersize>]
(fit-papersize)
Specifies the size of plot output.
Print File Information
--plot-header
[<on|off>]
(off)
Specifies whether to print file information when exporting. Page, date, filename, area and scale are printed if the option is on.
Use Screen Color
--plot-screen-color
[<on|off>]
(off)
Specifies whether to use screen color for image.
