Open

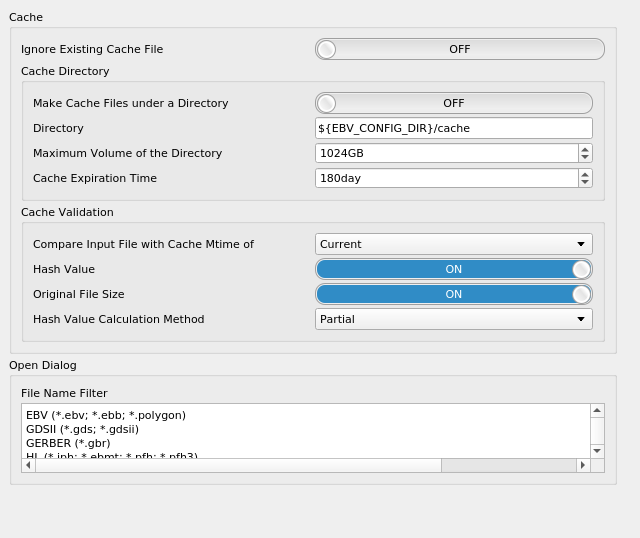

Openning file settings

Open

Open

Cache/Ignore Existing Cache File

--ignore-cache [<on|off>] (off)

Specifies whether to ignore an existing caches file when opening file. Cache file will be updated when file is opened.

Cache/Cache Directory/Make Cache Files under a Directory

--use-cache-dir [<on|off>] (off)

Specifies whether to create cache files under a directory. Cache files will be saved under ~/.config/ncs/nebv/cache/ if --cache-dir is not specified.

Cache/Cache Directory/Directory

--cache-dir [<dir path>] (${EBV_CONFIG_DIR}/cache)

Specifies a directory to save cache files. The cache file is saved when --use-cache-dir=on. Cache file will be created under ~/.config/ncs/nebv/cache/ when this option is not specified.

Cache/Cache Directory/Maximum Volume of the Directory

--cache-size [<GB>] (1024)

Specifies a maximum volume of the cache directory [GB]. Old cache files will be deleted automatically within a day if directory volume exceeds the specified volume.

Cache/Cache Directory/Cache Expiration Time

--cache-day [<day>] (180)

Specifies the expiration time of a cache file in a the cache directory [day].

Cache/Cache Validation/Compare Input File with Cache Mtime of

--cache-check-mtime [<Ignore|Current|Birth>] (Current)

Specifies whether to compare cache file mtime with input file.

Cache/Cache Validation/Hash Value

--cache-check-hash [<on|off>] (on)

Specifies whether to compare input file with a Hash value of Cache. The hash value type can be specified by --cache-hash-type.

Cache/Cache Validation/Original File Size

--cache-check-fsize [<on|off>] (on)

Specifies whether to compare the original file size with the size recorded in the cache file.

Cache/Cache Validation/Hash Value Calculation Method

--cache-hash-type [<none|full|partial|topfile>] (partial)

Specifies the Hash Value calculation method of a file. This option is effective when --cache-check-hash=on.

Open Dialog/File Name Filter

--open-dialog-filename-filter [<str>] ((*1))

Specifies file name filter for Open Dialog.
(*1) : EBV (*.ebv; *.ebb; *.polygon)<br>GDSII (*.gds; *.gdsii)<br>GERBER (*.gbr)<br>HL (*.iph; *.ebmt; *.pfh; *.pfh3)<br>JEOL (*.j0; *.j1; *.j2; *.j3; *.j31)<br>JOBDECK (*.jb; *.maly; *.p10; *.ms; *.lot; *.JTX; *.mds; *.jdk; *.jdf; *.jdxml; *.json; *.ejb)<br>MBF (*.mbf; *.mbf10; *.mbf11; *.mbf20)<br>MEBES (*.m1; *.m2; *.me; *.mr; *.m5; *.mebes)<br>MIC (*.la)<br>NDEDB (*.hdb; *.ehdb; *.xhdb; *.jddb)<br>OASIS (*.oas; *.oasis)<br>OASIS.CL (*.oasiscl)<br>OASIS.MASK (*.oasismask; *.oam)<br>OASIS.MBW (*.oasismbw; *.oasismbw20; *.oasismbw21; *.oasismbw22; *.oasismbw30; *.mbw; *.mbw20; *.mbw21; *.mbw22; *.mbw30)<br>P44MULTI (*.p44multi)<br>PSF2 (*.psf2)<br>VMAP (*.vmap; *.vmapcsv)<br>VSB (*.vsb; *.vsb11; *.vsb12; *.vsb12i)<br>
