Density Map
Calculating density map settings
Density Map
Density Map settings works when Figure Count Map and Vertex Count Map, too.
When Argument is specified as
<dim>, you can put unit suffix after the value (e.g. 0.1nm).
If no unit suffix is specified, [um] is assumed.
Display in Front
--density-map-draw-in-front
[<on|off>]
(on)

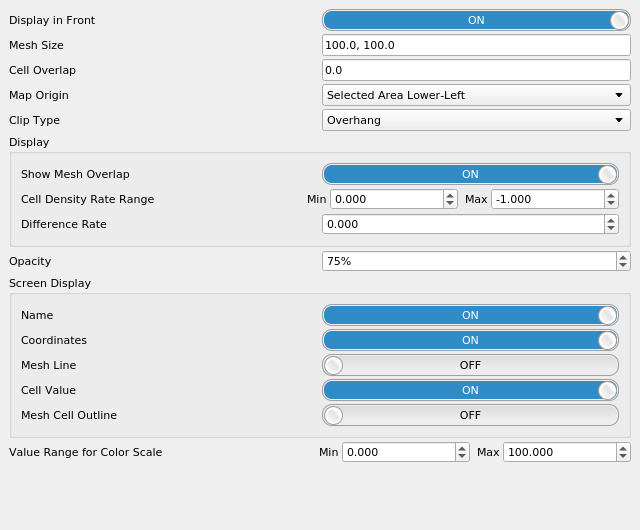

Specifies whether to display Density Map in front of figures.
Mesh Size
--density-map-mesh-size
[<dim>,<dim>]
(100.0,100.0)
Specifies the mesh size of the Density Map.
Cell Overlap
--density-map-overlap
[<dim>]
(0.0)
Specifies the overlap size of density map cell.
Map Origin
--density-map-calculation-origin-type
[<area|origin>]
(area)
Specifies the origin of Density Map.
Clip Type
--density-map-clip-type
[<Overhang|Clip|Overlap>]
(Overhang)
Specifies the method to clip cell edges when the selected area is not a multiple of cell area.
Display/Show Mesh Overlap
--density-map-with-overlap
[<on|off>]
(on)
Specifies whether to display density map with cell overlaps.
Display/Cell Density Rate Range
--density-map-rate-range
[<min,max>]
(0.0,-1.0)
Specifies the cell density rate range to be displayed [%].
Display/Difference Rate
--density-map-rate-diff
[<value>]
(0.0)
Specifies a density difference threshold in rate [%]. Any cell with a larger difference rate to neighbouring cells are displayed.
Opacity
--density-map-item-opacity
[<value>]
(75)
Specifies the opacity of the Density Map image [%].
Screen Display/Name
--density-map-item-draw-name
[<on|off>]
(on)
Specifies whether to display density map name.
Screen Display/Coordinates
--density-map-item-draw-coordinate
[<on|off>]
(on)
Specifies whether to display coordinates.
Screen Display/Mesh Line
--density-map-item-mesh-line
[<on|off>]
(off)
Specifies whether to display mesh line.
Screen Display/Cell Value
--density-map-item-mesh-value
[<on|off>]
(on)
Specifies whether to display cell values.
Screen Display/Mesh Cell Outline
--density-map-item-mesh-outline
[<on|off>]
(off)
Specifies whether to display mesh cell outline.
Value Range for Color Scale
--density-map-color-range
[<min,max>]
(0.0,100.0)
Specifies the range of values to be shown on the color scale [%].
