Auto Measure

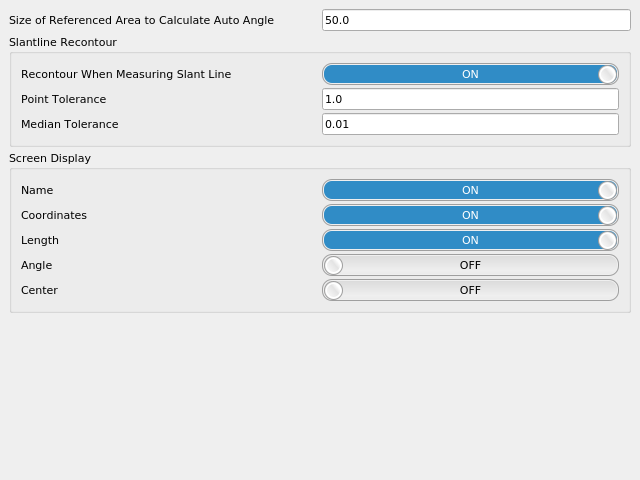

Auto measure settings
Auto Measure
When Argument is specified as
<dim>, you can put unit suffix after the value (e.g. 0.1nm).
If no unit suffix is specified, [um] is assumed.
Size of Referenced Area to Calculate Auto Angle
--measure-auto-angle-size
[<dim>]
(50)
Specifies area size to be referenced to calculate angle for Auto Angle.
Slantline Recontour/Recontour When Measuring Slant Line
--automeasure-slantline-recontour
[<on|off>]
(on)
Specifies whether to ignore small bumps when measuring a slant line.
Slantline Recontour/Point Tolerance
--automeasure-recontour-point-blur
[<dim>]
(1.0)
Specifies allowable error amount of vertex for recontour.
Slantline Recontour/Median Tolerance
--automeasure-recontour-median-blur
[<dim>]
(0.01)
Specifies allowable error amount of the median point of line for recontour.
Screen Display/Name
--automeasure-item-draw-name
[<on|off>]
(on)
Specifies whether to display measurement name.
Screen Display/Coordinates
--automeasure-item-draw-coordinate
[<on|off>]
(on)
Specifies whether to display coordinates.
Screen Display/Length
--automeasure-item-draw-length
[<on|off>]
(on)
Specifies whether to display measurement length.
Screen Display/Angle
--automeasure-item-draw-angle
[<on|off>]
(off)
Specifies whether to display measurement angle.
Screen Display/Center
--automeasure-item-draw-center
[<on|off>]
(off)
Specifies whether to display measurement center coordinates.
