Action
Action settings

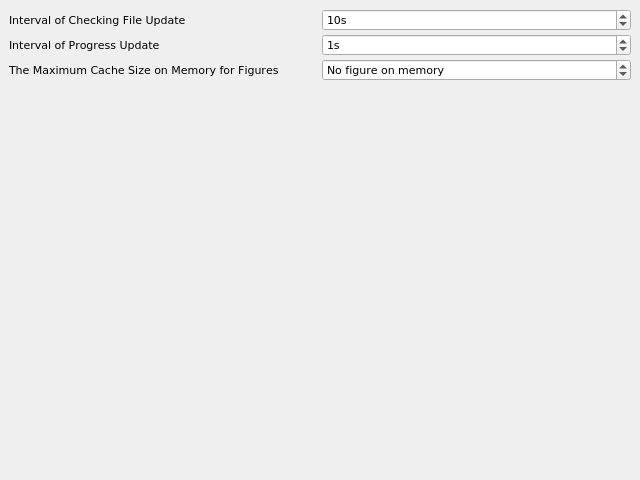

Action
Interval of Checking File Update
--open-check-update-interval
[<s>]
(10)
Specifies the interval for checking updates of a file [s].
Interval of Progress Update
--progress-interval
[<s>]
(1)
Specifies an interval of progress update [s].
The Maximum Cache Size on Memory for Figures
--memfig-size
[<GB>]
(0)
Specifies the maximum cache size on a memory to keep figure data [GB]. This option is only effective when --oasis-use-divided-cell=on or --oasiscl-use-divided-cell=on is specified for OASIS or OASIS.CL format, respectively.
