Add functionality to neoEBV using a Python script

Overview

Create a plugin file and place it in the plugin directory ($EBV_CONFIG_DIR/plugins. By default, ~/.config/ncs/nebv/plugins), you can add and use functions to neoEBV.

One or more “plugin classes” can be defined in a plugin file, and each “plugin class” can define a function.

How to create

  • Plugin files are written in python3.
  • The file name of a plugin file must end with .py extension.
  • The Plugin class must inherit from the base class pynebv.Plugin.
  • The Plugin class must define a location location.
  • The Plugin class must define a label label for display. This will be used as the name of the menu item.
  • The plugin class must define the author contact contact.
  • The plugin class must implement the action exec as a method.
    • The exec method must have params as well as the argument self.
  • The plugin will be added as a menu at the location specified by location.

Example of creating a plugin file

# Please change the class name to something appropriate
Plugin): # Specifies where to add the plugin
    Plugin: # Specifies where to add the plugin
    # By intentionally specifying incorrectly, you can see a list of possible locations in the error message
    location = 'file_panel/panel_menu'
    # Specifies the name displayed on the menu and tool button
    label = 'Sample Plugin 1'
    # Specifies the plugin creator's contact information
    contact = 'sample creator'
    # Describes the process when executing the plugin
    def exec(self, params): print('Hello, world!
        print('Hello, world!')
        files = pynebv.file.list()
        if len(files) == 0: return
            return
        files.color = 'Blue'
        error_files = pynebv.file.items('*error*')
        if len(error_files) == 0: return
            return
        error_files.hatch = 'Blank'
        error_files.bold = True
        error_files.color = 'Red'

Possible locations and types

The following locations can be specified with location:

location plugin type
main_window/global_menu global_menu
file_panel/panel_menu panel_menu
file_panel/item_menu item_menu
calculation_panel/panel_menu panel_menu
calculation_panel/item_menu item menu
registration_panel/panel_menu panel_menu
registration_panel/item_menu item menu
inspection_panel/panel_menu panel_menu
inspection_panel/item_menu item menu
mark_panel/panel_menu panel_menu
mark_panel/item_menu item_menu
matching_template_panel/panel_menu panel menu
matching_template_panel/figure_item_menu item menu
matching_template_panel/measurement_item_menu item menu
measurement_panel/panel_menu panel menu
measurement_points_tab/tab_menu panel menu
measurement_points_tab/item_menu item menu
measurement_alignments_tab/item_menu item menu
ls_detect_dialog/dialog_menu panel menu
ls_detect_dialog/item_menu item menu
screen/context_menu screen context menu
mini_map_panel/context_menu panel menu
console_panel/panel_menu panel menu
python_panel/panel_menu panel menu
note_panel/panel_menu panel menu
help_panel/panel_menu panel menu

types and where to add

The details of where to add the plugin menu and button for each “plugin type” as determined by location are as follows.

Plugin Type Location where menu item is added Location where Run button is added
Global Menu Hamburger Menu at the top right of the app Main Toolbar
panel menu the ... menu in the upper right of the panel (or Tab face) indicated by location the toolbar of the corresponding panel (if there is no corresponding toolbar, it will not be added)
Item menu menu that appears when you right-click (or right range-select) an item in the list indicated by location not displayed on the toolbar
screen context menu menu that appears when you right-click (or right range-select) on the screen not shown on the toolbar

params passed to the exec method

The location of the plugin determines the params argument given at runtime (when the exec method is called).

Context menus (item menus, screen menus) will set the following information.

params content value to be set type of plugin to be set
items list of items selected (or within the selected range) item menu, screen context menu
point the position (in um) where the mouse was released. (<x>,<y>) screen context menu
area area selected by mouse (in um). (<x1>,<y1>,<x2>,<y2>) screen context menu
start_end the position (in um) where the mouse is pressed and released. (<start x>,<start y>,<end x>,<end y>) screen context menu

The params argument is a dictionary, e.g. for a screen context menu

params = {"items" : [item1, item2], "point" : (<x>,<y>), "area" : (<x1>,<y1>,<x2>,<y2>), "start_end" : (<start x>,<start y>,<end x>,<end y>)}

Empty for directly executable menus (global and panel menus).

params = {}

Implementing the exec method

The exec method describes the functionality you want to achieve with the plugin.

Please refer to this pynebv reference page for available methods.

Checking loading status and reloading

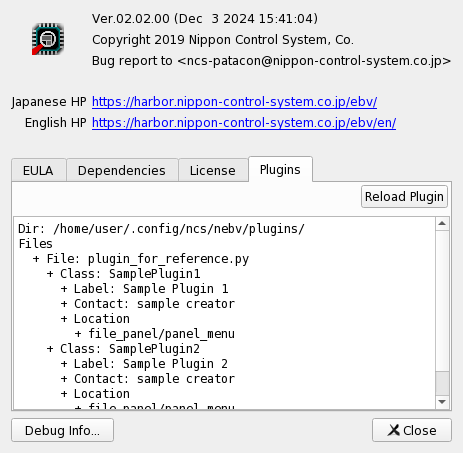

The current plugin loading status is displayed on the Plugins tab of the About dialog that appears from the main menu Help/About... from the main menu.

About Dialog Plugin Tab

In the same tab, there is also a Relaod Plugin button. This button allows you to reload the plugin. Please use this function when developing plug-ins.

How to use

Execution from GUI

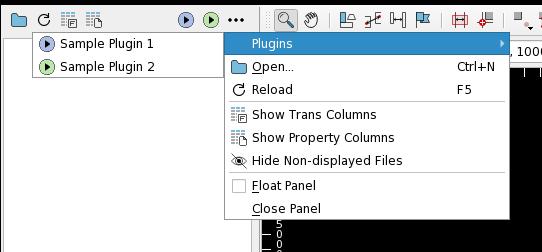

The menu item Plugins is added to the menu according to the location, and a plugin menu name which is specified by label. In some cases, a button will also be added to the toolbar.

Plugin

Selecting this item calls the exec method of the plugin class and executes the plugin.

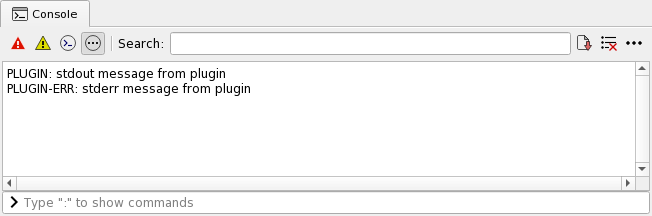

Standard output and standard error output can be used for calculations and other output from plugins. When executed from the GUI, the output content is displayed in the neoEBV Console Panel.

Please note that the content will not be visible unless the Others filter is turned ON.

Plugin

Execution from a Python script

Registered plug-ins are loaded at startup and can be executed in the neoEBV python script function as follows

pynebv.plugin['SamplePlugin1'].exec({})

In this case, output to standard output and standard error is treated as script output. This means that when output during execution without GUI (when the --headless option is specified at startup), it is directly output to the terminal, and when output with GUI present (when the --headless option is not specified at startup), it is displayed in the Python Panel.

Restrictions

  • The plugin requires Python execution from neoEBV.
    • It requires python to be installed in the environment and has license restrictions (requires Photomask license).
  • We do not anticipate that the plug-in functions will take a long time to execute from the GUI.
    • Specifically, if it takes more than 10 minutes to execute, it will be considered illegal and will time out.
    • The timeout does not apply when executing from a Python script, only when executing the plugin from the GUI.
Sample Files

Introducing sample Python plugin files.
