Pattern Match
Search for figures that match the extracted figure from the specified measurement point location, and create measurement point for each figure found.
This feature requires a Pattern Match license. Please contact us.
How to Execute
Right-click on a measurement point in the datalist of Measurements tab in Measurement Panel and select Pattern Match with Item/Search Around to open Search Size dialog. Enter the area and press OK to perform Pattern Match within the specified area around the point.
| Item | Action |
|---|---|
| Size [um] | Specify the search area size. |
The measurement points are saved to Measurement Panel and displayed on screen.

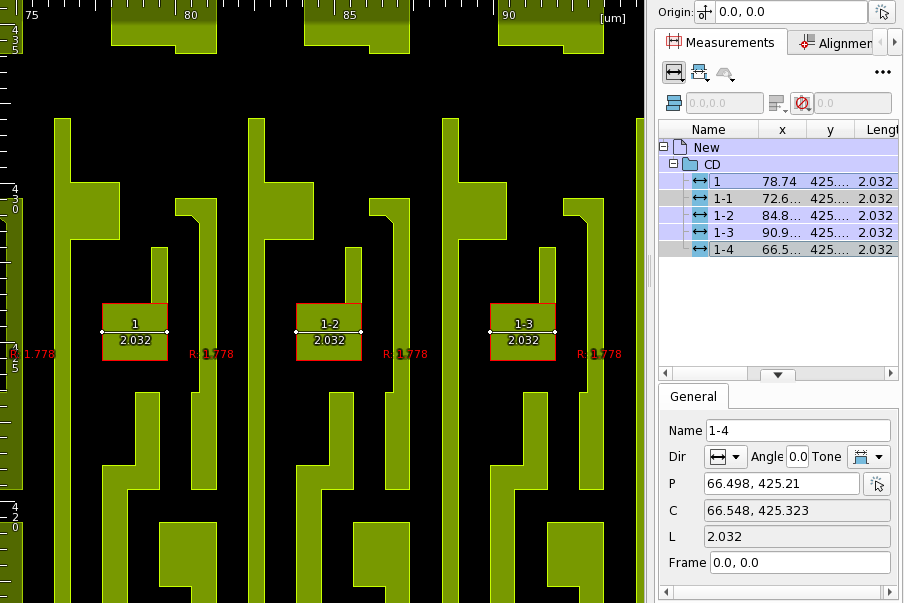

The names of found measurement points are <name of the base measurement point>-<serial number>.
Related Settings
You can change the search condition and the display method of the search result in Pattern Match from the Preference. See preference Action/Recipe Creation/Add Measurement/Pattern Matchpage for detail.
