Pattern Match
Execute a Pattern Match using figures included in a template group.
This feature requires a Pattern Match license. Please contact us.
How to Execute

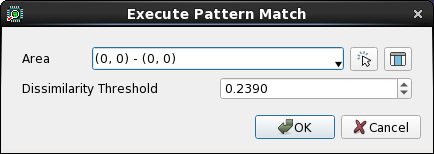

Right-click a template group in the Matching Template Panel and select Pattern Match from the context menu to open Execute Pattern Match dialog.
Enter the area and press OK to perform Pattern Match within the specified area using figures included in the selected template groups.
| Item | Action |
|---|---|
| Area | Specify the search area. |
| Dissimilarity Threshold | Specify the threshold of Pattern Match. |

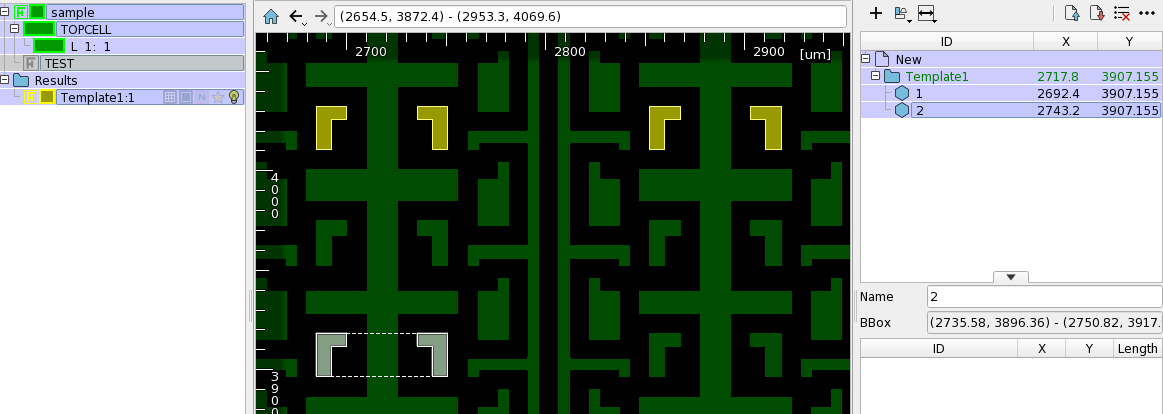

The matched figures will be added to the File List and displayed under the Results by template group. They will be also displayed on the screen.
Related Settings
You can change the search condition in Pattern Match from the Preference. See preference Action/Matching Template/Pattern Matchpage for detail.
Last modified December 20, 2024
