Matching Template Panel

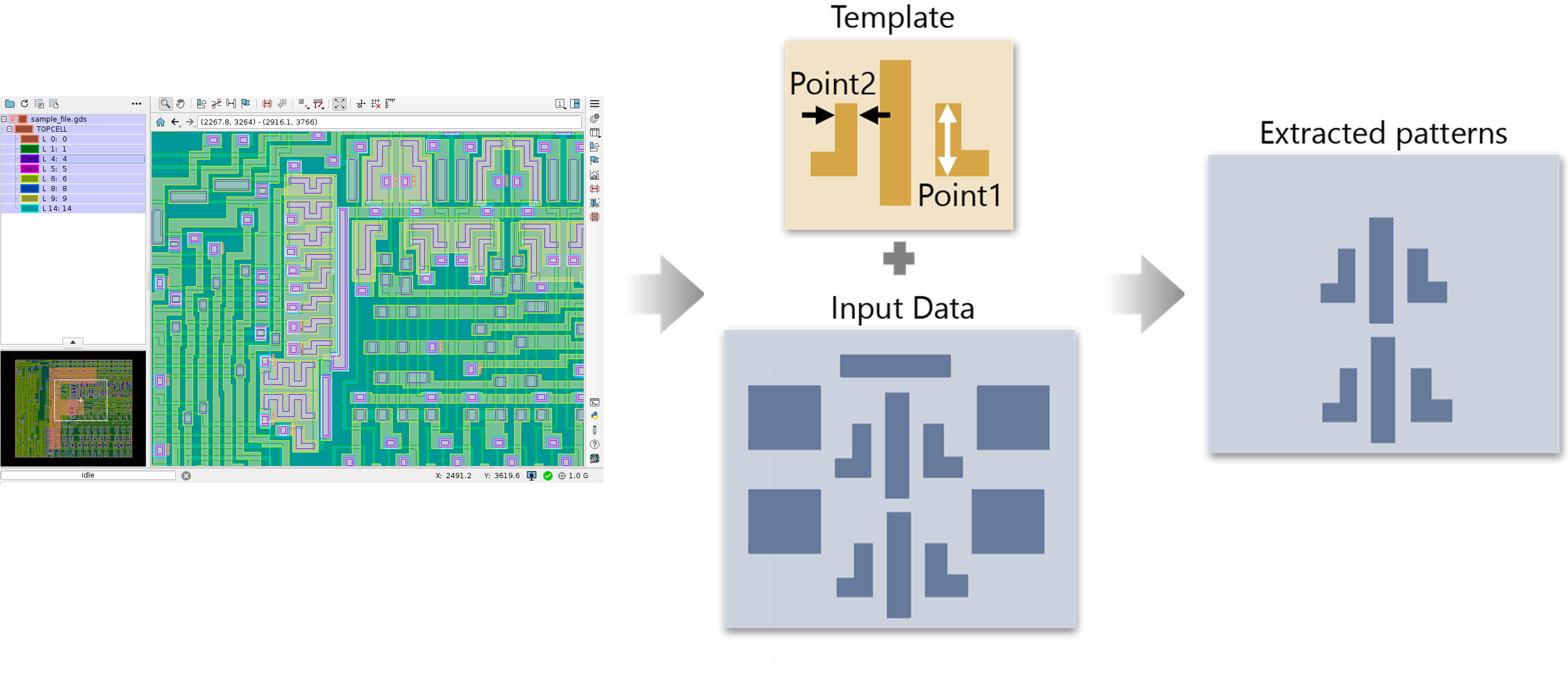

You can create a template file to be input into pattern-match.

Matching Template Panel Toolbar

Button

Icon	Item	Action
	Add Group	Add a new template group.
	Add Figure	Switch to Add Figure mode and specify how to search for figures.
	Direction	Switch to Add Measurement mode and specify the measurement direction.
	Load	Open the Load Matching Template File dialog to load template data into the datalist.
	Save	Open the Save Matching Template File dialog to save the template data in the datalist.
	Clear All	Clear the datalist.
	Matching Template	Display the Matching Template Panel menu.

Scrollbar Buttons

Icon	Item	Action
	Top	Scroll to the top of list.
	Previous	Scroll to the previous line.
	Next	Scroll to the next line.
	Bottom	Scroll to the bottom of list.
	Previous Bookmark	Scroll to previous Bookmark (shown only with bookmark).
	Next Bookmark	Scroll to next Bookmark (shown only with bookmark).

Menu	Action
Add Group	Add a new template group.
Add Figure	Switch to Add Figure mode and specify how to search for figures.
Direction	Switch to Add Measurement mode and specify the measurement direction.
Load	Open the Load Matching Template File dialog to load template data into the datalist.
Save	Open the Save Matching Template File dialog to save the template data in the datalist.
Clear All	Clear the datalist.
Float Panel	Float the panel.
Close Panel	Close the panel.

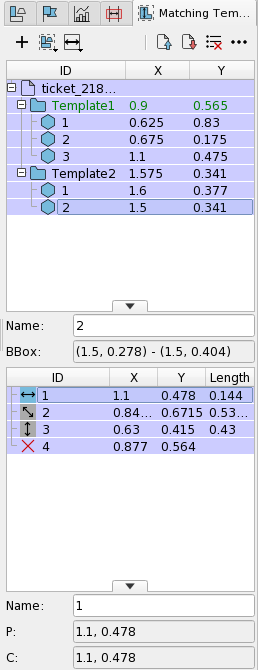

Datalist for Matching Template Panel

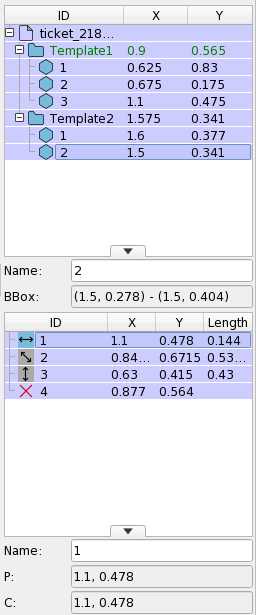

Matching Template Panel DataList

Datalist Button

Icon	Item	Action
	Icon	left-click the icon of an item to display its Property.
	Lock	(Visible only on mouse hover) Lock the item so that it is not deleted when you clear the datalist.
	Bookmark	(Visible only on mouse hover) Bookmark the item for easy cruising.

Menu	Action
Set Current	Specify the template group to which figures and measurement points are to be added (this menu is displayed only when template group is specified).
Clear Group Content	Delete added figures and measurement points in the template group (this menu is displayed only when template group is specified).
Pattern Match	Execute a Pattern Match using the figures included in the template group (this menu is displayed only when template group is specified).
Jump	Center the screen to the specified item.
Start Auto Navigation	Start the auto-navigation from the specified item. Refer to Auto Navigation Bar page.
Select/Deselect	Reverse the selection state of the specified item.
Show	Reverse the display state of the specified item on the screen.
Display/Name	Reverse the name display state of the specified item on the screen.
Display/Coordinates	Reverse the coordinates display state of the specified item on the screen.
Color	Open a color specification dialog that changes the color of the specified item on the screen.
Lock	Reverse the lock state of the specified item. The locked items are not deleted when you clear the datalist.
Bookmark	Reverse the Bookmark state of the specified item. You can scroll only bookmarked items with dedicated buttons.
Expand	Expand the tree view of the specified item.
Collapse	Collapse the tree view of the specified item.
Expand All	Expand the tree view of all items.
Collapse All	Collapse the tree view of all items.
Properties	Open the File Properties dialog that displays the properties of the specified item.
Delete	Delete the specified item.

Menu	Action
Jump	Center the screen to the specified item.
Start Auto Navigation	Start the auto-navigation from the specified item. Refer to Auto Navigation Bar page.
Select/Deselect	Reverse the selection state of the specified item.
Show	Reverse the display state of the specified item on the screen.
Display/Name	Reverse the name display state of the specified item on the screen.
Display/Coordinates	Reverse the coordinates display state of the specified item on the screen.
Display/Length	Reverse the length display state of the specified item on the screen.
Display/X/Y Components	Reverse the delta length display state of the specified item on the screen.
Display/Angle	Reverse the angle display state of the specified item on the screen.
Display/Center	Reverse the center display state of the specified item on the screen.
Color	Open a color specification dialog that changes the color of the specified item on the screen.
Lock	Reverse the lock state of the specified item. The locked items are not deleted when you clear the datalist.
Bookmark	Reverse the Bookmark state of the specified item. You can scroll only bookmarked items with dedicated buttons.
Expand All	Expand the tree view of all items.
Collapse All	Collapse the tree view of all items.
Properties	Open the File Properties dialog that displays the properties of the specified item.
Delete	Delete the specified item.

Confirmation for Unsaved Changes

When templates are created or edited, an unsaved indicator (*) appears in the panel title section. If you try to exit neoEBV while the unsaved indicator is displayed, a dialog box to warn you that there is an unsaved change will appear. The unsaved indicator will be cleared when the changed template is saved, cleared, or loaded.

If you do not need the confirmation for unsaved changes, you can turn it off from the preference.

See Confirm Data Save Status before Exit/Matching Template in Preference Window/Data List page.
