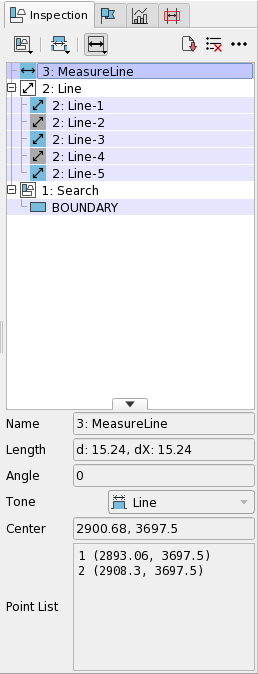

Inspection Panel

Displays selected figures, cell information, and measurement information.

Inspection Panel Toolbar

Button

Icon	Item	Action
	Target	Switch to Search Figure & Cell mode and specify the search item.
	2p Measure Mode	Switch to 2p Measure mode and specify the measurement method. Refer to 2points Measurement page.
	Direction	Switch to Auto Measure mode and specify the measurement direction.
	Save	Open the save dialog to save items in the datalist.
	Clear All	Clear the datalist.
	Inspection	Display the Inspection Panel menu.

Scrollbar Buttons

Icon	Item	Action
	Top	Scroll to the top of list.
	Previous	Scroll to the previous line.
	Next	Scroll to the next line.
	Bottom	Scroll to the bottom of list.
	Previous Bookmark	Scroll to previous Bookmark (shown only with bookmark).
	Next Bookmark	Scroll to next Bookmark (shown only with bookmark).

Menu	Action
Search	Specify a search item and enters Search Figure & Cell mode.
2p Measure	Specify the measurement method and enter the 2p Measure mode. Refer to 2points Measurement page.
Auto Measure	Specify the measurement direction and enter the Auto Measure mode.
Extract	Open the Extract dialog to extract figures for the specified conditions.
Save	Open the save dialog to save items in the datalist.
Clear All	Clear the datalist.
Float Panel	Separate the panel.
Close Panel	Close the panel.

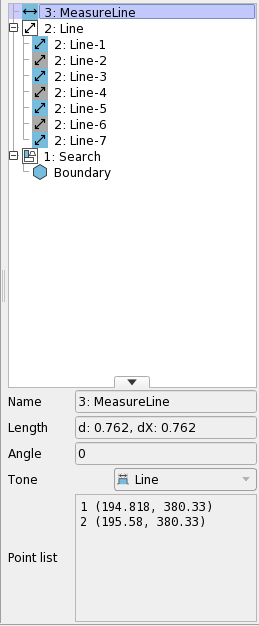

Datalist for Inspection Panel

Inspection Panel DataList

Datalist Button

Icon	Item	Action
	Icon	Left-click the icon of an item to display its Property.
	Lock	(Visible only on mouse hover) Lock the item so that it is not deleted when you clear the datalist.
	Bookmark	(Visible only on mouse hover) Bookmark the item for easy cruising.

Confirmation for Unsaved Changes

When inspections are created or edited, an unsaved indicator (*) appears in the panel title section. If you try to exit neoEBV while the unsaved indicator is displayed, a dialog box to warn you that there is an unsaved change will appear. The unsaved indicator will be cleared when the changed inspection is saved, cleared, or loaded.

If you do not need the confirmation for unsaved changes, you can turn it off from the preference.

See Confirm Data Save Status before Exit/Inspection in Preference Window/Data List page.
