File Open
Open the file and display it on the screen.
How to Execute

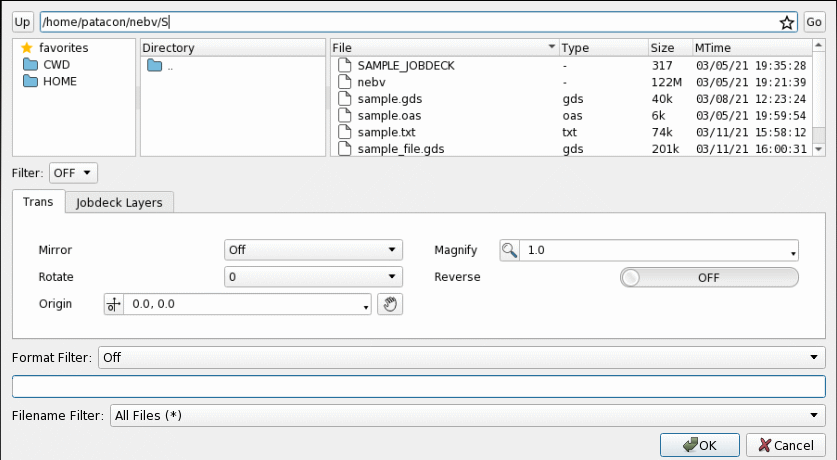

Click on the
icon to display the Open File dialog.
When you specify a file and press OK, the file will be loaded and displayed on the screen.
| Menu | Action |
|---|---|
| Magnify | Magnify the file and display it. |
| Rotate | Rotate the file and display it. |
| Origin | Move the file and display it. |
| Reverse | Reverse the negative and positive of a file. |
| Mirror | Mirror the file on the specified axis. |
| Format Filter | Filter files by file format. |
| Filename Filter | Filter files by file name. |
If more than one is specified, they will be processed in the following order.
Mirror->Rotate->Origin->Magnify->Reverse

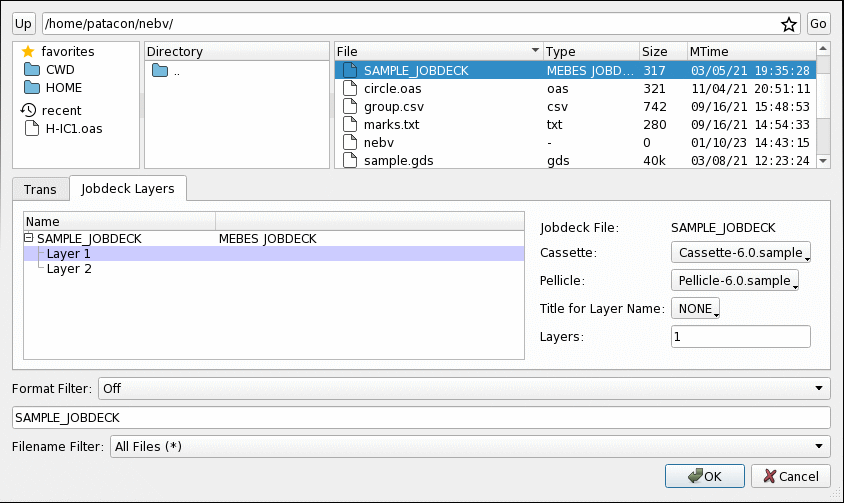

When you select a jobdeck, the Jodeck Layers tab allows you to select which layers, cassettes and pellicles to display. You can also specify if you want to display the title instead of the layer name on the datalist.
| Menu | Action |
|---|---|
| Cassette | Specify the cassette to display. |
| Pellicle | Specify the pellicle to display. |
| Title for Layer Name | Specify whether or not to display the title instead of the layer name on the datalist. |
| Layers | Specify the layers to display, separated by comma. |
The sample for cassettes and pellicles will be generated on first run. Refer to Startup Configuration page.
