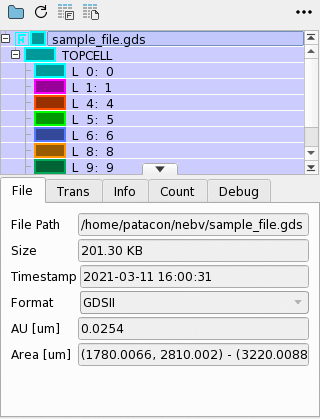

File List

The opened file will be added to this panel. Toggle display on/off for each chip and layer, and change transform such as mirror and rotation.

File List Toolbar

Button

Icon	Item	Action
	Open	Open the Open File dialog. Refer to File Open page.
	Reload	Reopen all files on the datalist. Refer to File Reload page.
	Show Trans Columns	Show the Trans of the file on the datalist.
	Show Property Columns	Show the Property of the file on the datalist.
	File	Display the File List menu.

Scrollbar Buttons

Icon	Item	Action
	Top	Scroll to the top of list.
	Previous	Scroll to the previous line.
	Next	Scroll to the next line.
	Bottom	Scroll to the bottom of list.
	Previous Bookmark	Scroll to previous Bookmark (shown only with bookmark).
	Next Bookmark	Scroll to next Bookmark (shown only with bookmark).

Menu	Action
Open	Open the Open File dialog.
Reload	Reopen all files on the datalist.
Show Trans Columns	Show the Trans of the file on the datalist.
Show Property Columns	Show the Property of the file on the datalist.
Hide Non-displayed Files	Hide files that are not displayed on the screen from the datalist.
Float Panel	Float the panel.
Close Panel	Close the panel.

Datalist for File List

File List DataList

In the case of P44MultiFile format, the format of the fragment file is appended in brackets.

Datalist Button

Icon	Item	Action
	Trans	Open a popup dialog to change the Trans of the file.
	Color & Hatch	Open a popup dialog to change the display color and hatch of the file.
	Draw Cell Line	Draw cell line (shown only on mouse hover).
	Draw Chip Line	Draw chip line (shown only on mouse hover).
	Draw Dose Index	Draw dose index (shown only on mouse hover).
	Bookmark	Bookmark (shown only on mouse hover).
	Highlight	Highlight (shown only on mouse hover).

Operations

Operation	Action
left-click	Invert the display state of the clicked item.
left-drag	Invert the display state of the selected items.
center-click	Fit the screen to the area of the clicked item.
center-drag	Fit the screen to the area of the selected items.
right-click	Display the context menu for the clicked item (when an item is selected, the context menu will be for the selected item).
right-drag	Display the context menu for the selected items.
`→`, `←`, `↓`, `↑`	Switch the item displayed in Property.
`Ctrl` + left-click	Invert the selection of the clicked item.
`Ctrl` + left-drag	Invert the selection of the selected items.
`Ctrl` + center-click	Same as center-click.
`Ctrl` + center-drag	Same as center-drag.
`Ctrl` + right-click	Same as right-click.
`Ctrl` + right-drag	Same as right-drag.
`Ctrl` + `→`, `←`, `↓`, `↑`	Same as `→`, `←`, `↓`, `↑`.
`Shift` + left-click	Turn on the display state of the clicked item and turn off the display state of other items.
`Shift` + left-drag	Turn on the display state of the selected item and turn off the display state of other items.
`Shift` + center-click	Turn on the display state of the clicked item and turn off the display state of other items in the same hierarchy.
`Shift` + center-drag	Turn on the display state of the selected item and turn off the display state of other items in the same hierarchy.
`Shift` + right-click	Same as right-click.
`Shift` + right-drag	Same as right-drag.
`Shift` + `→`, `←`, `↓`, `↑`	Turn on the display state of the selected item and turn off the display state of other items. It also toggles the item displayed in Property.
`Ctrl` + `Shift` + left-click	Apply the inverted display status of the clicked item to the item of the hierarchy below the clicked item.
`Ctrl` + `Shift` + left-drag	Apply the inverted display state of the top level of the selected item to the item of the lower level of the selected item.
`Ctrl` + `Shift` + center-click	Same as `Shift` + center-click.
`Ctrl` + `Shift` + center-drag	Same as `Shift` + center-drag.
`Ctrl` + `Shift` + right-click	Same as right-click.
`Ctrl` + `Shift` + right-drag	Same as right-drag.
`Ctrl` + `Shift` + `→`, `←`, `↓`, `↑`	Same as `Shift` + `→`, `←`, `↓`, `↑`.
`Ctrl` + `a`	Turn on the selection status of all items.
Click empty area in datalist	Turn off the selection status of all items.
`Esc`	Turn off the selection status of all items.
`Shift` + Mouse hover	Highlight the hovered item.

Menu	Action
Zoom to Fit	Fit the screen to the area of the specified item.
Start Auto Navigation	Start the auto-navigation from the specified item. Refer to Auto Navigation Bar page.
Select/Deselect	Invert the selection status of the specified item.
Show	Invert the display state of the specified item.
Display/Show & Hide Others	Turn on the display state of the specified item and turn off the display state of other items.
Display/Highlight	Highlight the specified item.
Display/Pause	Ignore the specified item.
Bookmark	Bookmark the item for easy cruising.
Trans/Magnify	Change the magnification of the specified item.
Trans/Mirror	Mirror the specified item.
Trans/Rotate	Rotate the specified item.
Trans/Reverse	Reverse the specified item.
Trans/Origin	Change the origin of the specified item.
Trans/Open Editor	Open the File Trans dialog to change the Trans of the specified item.
Trans/Reset	Reset the Trans of the specified item to the state at startup.
Coloring/Layer & Datatype	Color the specified item according to Layer & Datatype.
Coloring/Cell	Color the specified item by Cell.
Coloring/Dose Index/Datatype	Color the specified item by Dose Index/Datatype.
Coloring/Remap Color	Reassign the Color and Hatch of the specified item.
Coloring/Area-Value Map CSV Value Range	Set the value range for gradient display of a Area-Value Map CSV File (shown only when at a Area-Value Map CSV File).
Coloring/Open Editor	Open the Color & Hatch dialog to change the display of the specified item.
Coloring/Reset	Restore the color of the specified item to the state at startup.
Style/Bold	Make the Outline of the specified item bold.
Style/Paint	Display the Paint of the specified item.
Style/Fade	Reduce the brightness of the Paint of the specified item and display it.
Style/Outline	Display the Outline of the specified item.
Style/Open Editor	Open the Color & Hatch dialog to change the display of the specified item.
Style/Reset	Restore the Style of the specified item to the state at startup.
Lines & Values/Cell Line	Display the Cell Line of the specified item.
Lines & Values/Chip Line	Display the Chip Line of the specified item.
Lines & Values/Dose Index	Displays the Dose Index of the specified item.
Dose Table/Apply to Display	Display the Dose Index of the specified item according to the Dose Table.
Dose Table/Load from File	Open the Load Dose Table File dialog where you can specify a Dose Table. The Dose Table is used to convert the Dose Index of the specified item to the Dose Value.
Structure Tree	Open the Structure Tree dialog which displays the hierarchy of the specified item.
Close File	Close the specified item.
Expand	Expand the tree view of the specified item.
Collapse	Collapse the tree view of the specified item.
Expand All	Expand the tree view of all items.
Collapse All	Collapse the tree view of all items.
Properties	Open the File Properties dialog that displays the properties of the specified item.
